| Tempat asal: | CINA |
|---|---|
| Nama merek: | YIZGEAR |
| Nomor model: | SB22122701 |
| Kuantitas min Order: | 2 set |
| Harga: | $700/Set |
| Kemasan rincian: | Peti kayu lapis |
| Waktu pengiriman: | 62 Hari |
| Syarat-syarat pembayaran: | T/T, L/C |
| Menyediakan kemampuan: | 500 set/bulan |
| Mn: | 6.5 | Angulo De Presion: | 20° |
|---|---|---|---|
| Sentido De Helice: | Izquierdo | Diametro Exterior: | 62.03 |
| Kalidad: | RUPST 10-12 | Altura: | 11.26 |
| Backlash: | 0.18~0.22 | Diametro De Paso: | 45.50 |
| Menyoroti: | Perawatan Panas Spiral Bevel Gears,62 HRC Spiral Bevel Gears,AGMA 11 Grade Spiral Bevel Gears |
||

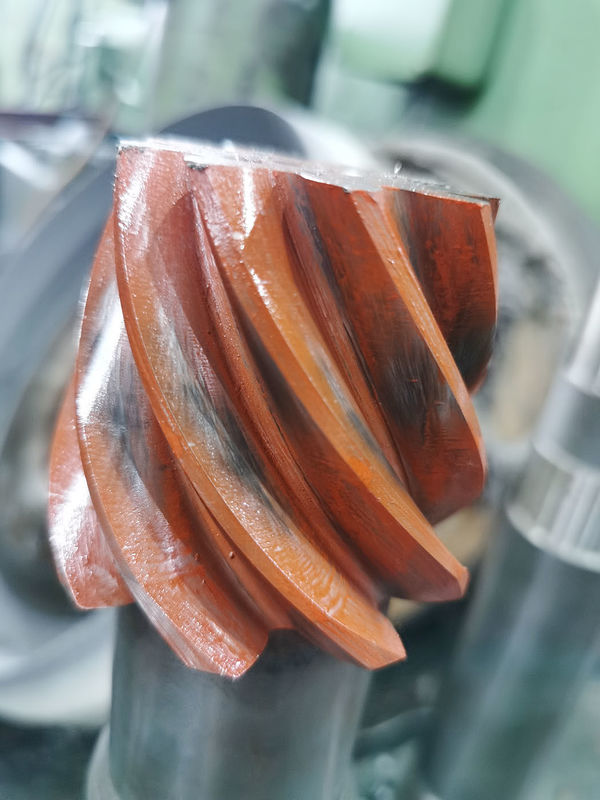

FLECHA PINON CONICO ESPIRAL Z 7
Bahan: SAE 4320/20CrNi2MoA
Angulo de fondo 8°28'6,6"
Angulo DE PASO 9°41'19.68"
Angulo de Cara 13°42'46.08"
Pengolahan Termal: Cementado
DUREZA: 58-62 HRC
| Produk | Juego de engranajes cónicos en espiral |
| Disesuaikan | √ |
| Bahan | 20CrNiMoA/AISI/SAE 8620 |
| Pabrik gigi gigi | Perbaikan roda gigi |
| Diameter Pitch | 6.5 |
| Jumlah Gigi (Z) | 7 |
| Sudut Tekanan (α) | 20° |
| Sudut Heliks (β) | 35° |
| Tingkat Keakuratan Gigi | AGMA 10-11Grade |
| Pengolahan Panas | Cementado |
| Kekerasan permukaan | 58-62 HRC |
| Perbandingan Kode Kelas Baja | |||||
| CHINA/GB | ISO | GOST | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20XM | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XGT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM 439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
