| Tempat asal: | Cina |
|---|---|
| Nama merek: | YIZGEAR |
| Nomor model: | HB220803001 |
| Kuantitas min Order: | 1 set |
| Harga: | $3000/ Piece |
| Kemasan rincian: | peti kayu lapis |
| Waktu pengiriman: | 82 Hari |
| Syarat-syarat pembayaran: | L/C,T/T |
| Menyediakan kemampuan: | 220 Set/Bulan |
| Modul: | 32 | Kekerasan: | 260-280 HB |
|---|---|---|---|
| Merek: | OEM | Diameter Ujung: | 4500 |
| Lebar: | 120MM | Bahan: | 40CrNiMoA |
| Menyoroti: | 40CrNiMo Steel Herringbone Gears,V Type Double Helical Gear,32 Modul Herringbone Gears |
||
| Atribut | Nilai |
|---|---|
| Modul | Jumlah Gigi (Z) |
| Kekerasan | 260-280 HB |
| Merek | OEM |
| Diameter Ujung | 4500 |
| Lebar | 120mm |
| Material | 40XH2MA/40XHMA |

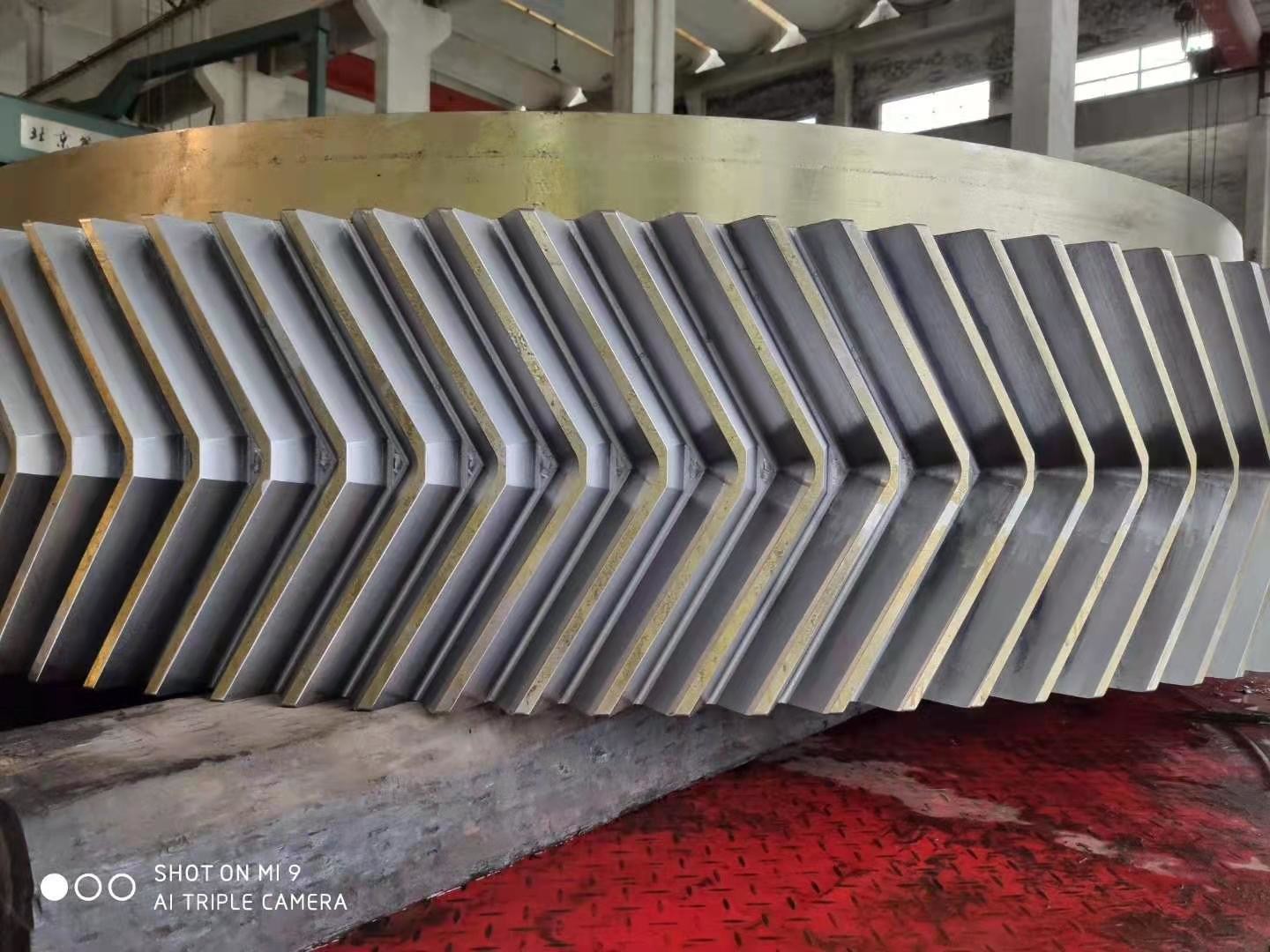

1) Deskripsi Herringbone Gear
Gigi herringbone berukuran besar ini dibuat dengan baja tempa 40CrNiMoA.
2) Fitur Herringbone Gear
| Produk | Set Gigi Herringbone |
|---|---|
| Dibuat Khusus | Modul (M) |
| Tipe Profil Gigi | Gigi Silinder |
| Manufaktur Gigi Roda Gigi | Penggilingan Gigi Roda Gigi |
| √ | Modul (M) |
| 32 | Jumlah Gigi (Z) |
| 102 | Sudut Tekan (α) |
| 20° | Sudut Helix (β) |
| 25° | Tingkat Akurasi Gigi |
| ISO Grade 8-9 | Perlakuan Panas |
| Pengerasan Induksi | Kekerasan Permukaan |
| 50-55 HRC | Perbandingan Nilai Kode Baja |
| ISO | ГΟСТ | ASTM | JIS | DIN | 45 |
|---|---|---|---|---|---|
| 1045 | 45 | 1045 | S45C | CK45 | 40Cr |
| 41Cr4 | 20CrMo | 5140 | SCr440 | 41Cr4 | 20CrMo |
| 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 | 42CrMo |
| 42CrMo4 | 20CrMnTi | 4140 | SCM440 | 42CrMo4 | 20CrMnTi |
| 18XГT | SMK22 | 20Cr2Ni4 | |||
| 20X2H4A | 20CrNiMo | ||||
| 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 | 40CrNiMoA |
| 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | 20CrNi2Mo | |
| 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | Gambar Produk |
