| Tempat asal: | Cina |
|---|---|
| Nama merek: | YIZGEAR |
| Nomor model: | LSZG112601 |
| Kuantitas min Order: | 2 set |
| Harga: | $1000/ Piece |
| Kemasan rincian: | peti kayu lapis |
| Waktu pengiriman: | 75 hari |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 50 set/bulan |
| Jenis Profil: | Gigi cincin eksternal | Jenis: | Tipe terpisah |
|---|---|---|---|
| Diameter luar: | 5189 | Ineer Hole Dia: | 4811 |
| Kekerasan: | 230-260 HB | Berat badan: | 1050kg |
| Menyoroti: | Transmisi Split Gear Ring Eksternal,Gear Transmisi Modul 4140 T,Gear Spur Ring Eksternal 212T |
||
| Atribut | Nilai |
|---|---|
| Jenis Profil | Perlengkapan cincin luar |
| Jenis | Tipe pembagian |
| Diameter luar | 5189 |
| Iner Hole Dia | 4811 |
| Kekerasan | 230-260 HB |
| Berat badan | 1050Kg |

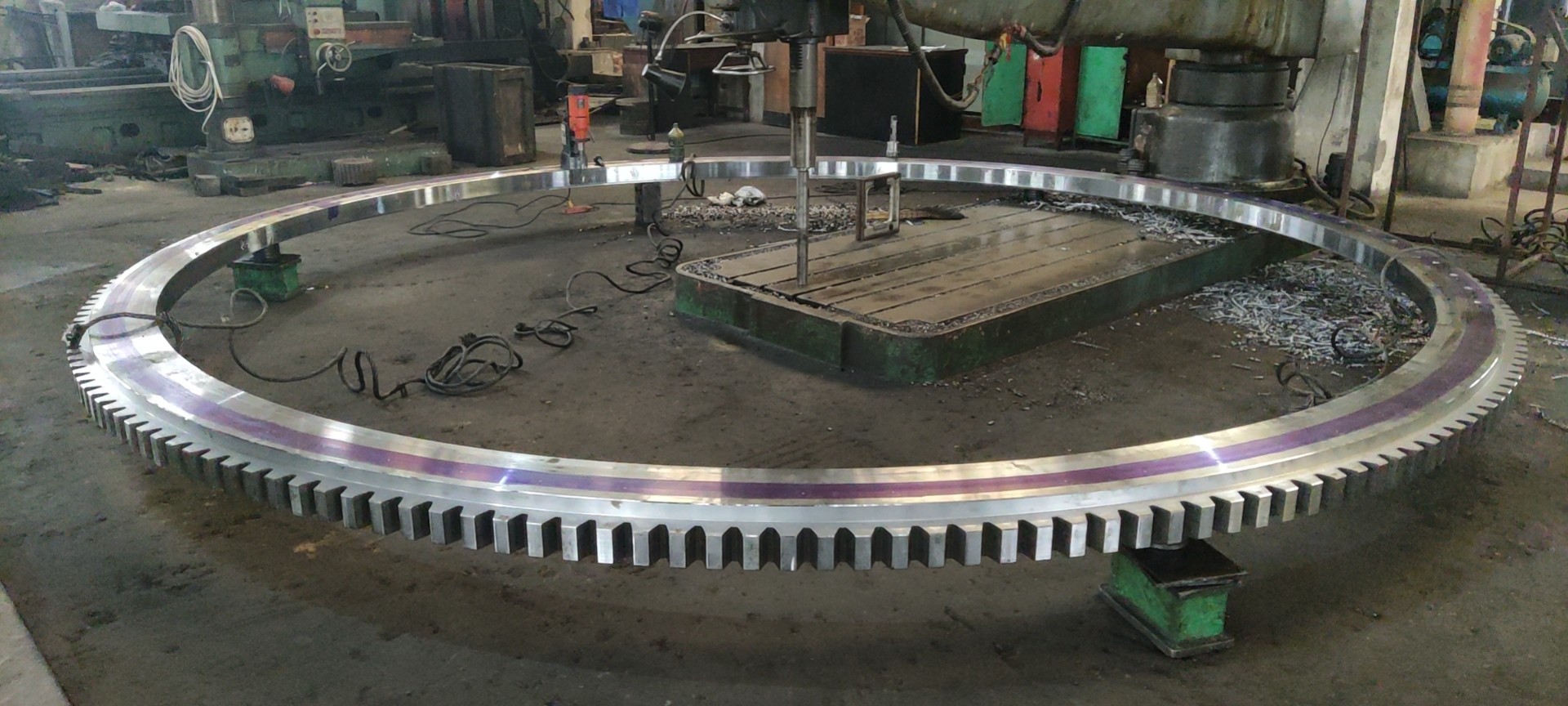

Transmisi Gear 4140T 24.25 Modul 212T Gear Eksternal Ring Spur Gear
| Modulo | 24.25 |
| PASO | 76.1838 |
| DIAM. EXT | 5189 |
| Jumlah gigi | 212 |
| Ruang Antara Gigi | 38.09 |
| AGG. DE PRESION | 20° |
| Produk | Cincin Gir Eksternal |
| Disesuaikan | √ |
| Bahan | Gear Spur |
| Pabrik gigi gigi | Gear Hobbing/ Gear Shaping |
| Penggilingan Gigi Gear |
| Modul (M) | 24.25 |
| Jumlah Gigi (Z) | 212 |
| Sudut Tekanan (α) | 20° |
| Sudut Heliks (β) | 0° |
| Tingkat Keakuratan Gigi | Kelas ISO 8-9 |
| Pengolahan Panas | Pengeras Induksi |
| Kekerasan permukaan | 230-260 HB |
| CHINA/GB | ISO | GOST | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20XM | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XGT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM 439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
