| Tempat asal: | Cina |
|---|---|
| Nama merek: | YIZGEAR |
| Nomor model: | SS23032604 |
| Kuantitas min Order: | 5 buah |
| Harga: | $150.0/Piece |
| Kemasan rincian: | Peti kayu lapis |
| Waktu pengiriman: | 55 Hari |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, D/P |
| Menyediakan kemampuan: | 1000 Potongan/Bulan |
| Jenis Profil: | Libatkan Spline | Tipe 2: | Perlengkapan matahari |
|---|---|---|---|
| Modul Splin: | 6 | Nomor Gigi Spline: | 18 |
| Modul Sun Gear: | 7 | Nomor Gigi Sun Gear: | 22 |
| Menyoroti: | Poros Gigi Spline Transmisi,Poros Gigi Spline 55 HRC,Poros Gigi Spline Kelas ISO 7 |
||

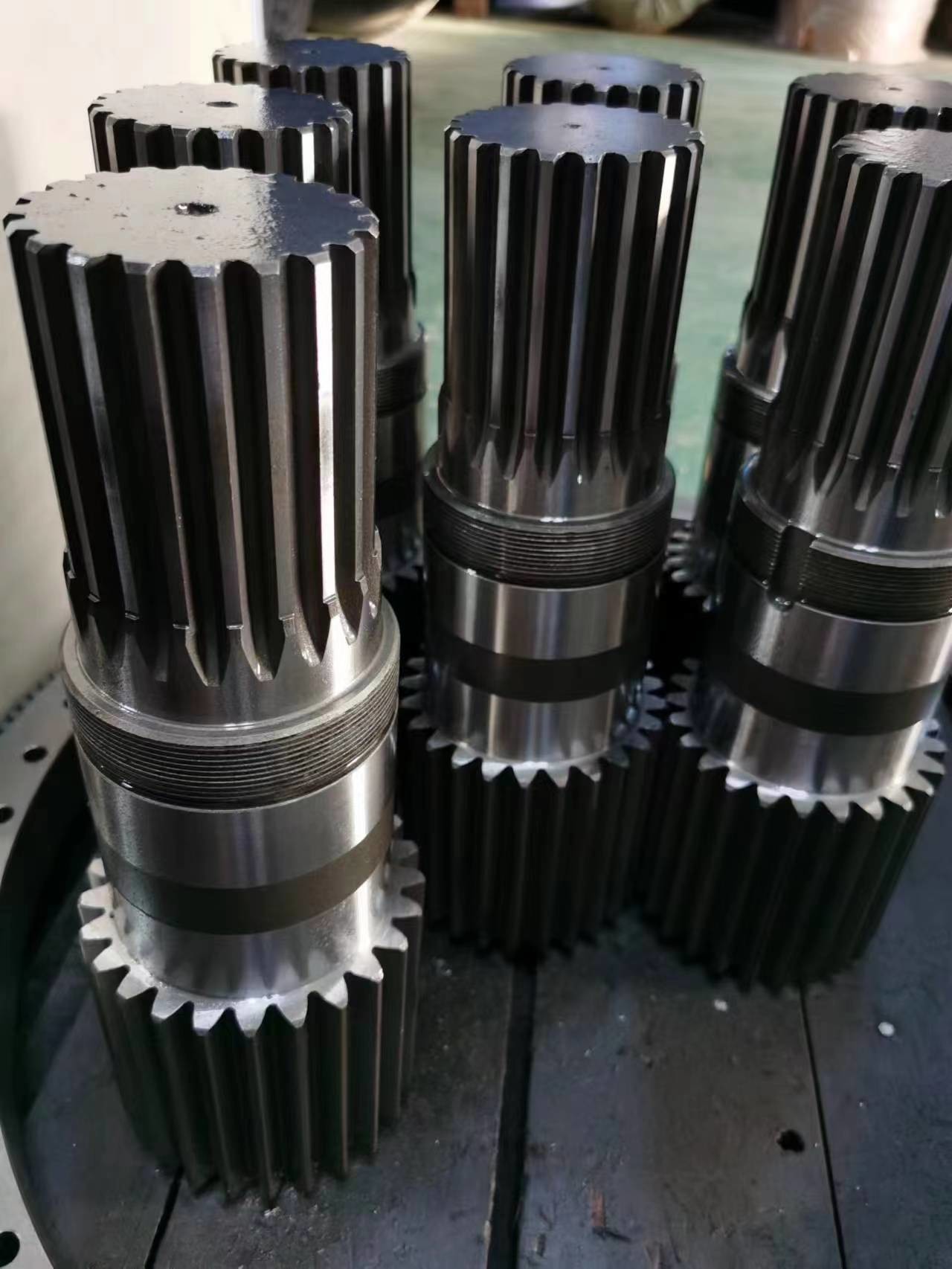

Transmisi Gear Spline Shaft & Sun Gear untuk Planet Gear System
Involve Spline dan Sun Gear Shaft
Involute Spline Module: 6
Modul Gear Spur: 7
Kerapatan gigi gir Ra1.6
Bahan: 17CrNiMo6
Kekerasan: 58-62 HRC
Tingkat Kualitas Peralatan: ISO 6-7
Penggilingan Spline
| Produk | Involve Spline Shaft |
| Disesuaikan | √ |
| Jenis Profil Gir | Spline |
| Pabrik gigi gigi | Penggilingan Spline/Spilne Grinding |
| Penggilingan Gigi Gear | √ |
| Modul (M) | Adat |
| Jumlah Gigi (Z) | Adat |
| Adat | 30° |
| Sudut Heliks (β) | 0° |
| Tingkat Keakuratan Gigi | Kelas ISO 6-7 |
| Pengolahan Panas | Pengeras Induksi |
| Kekerasan permukaan | 50-55 HRC |
| Perbandingan Kode Kelas Baja | |||||
| CHINA/GB | ISO | GOST | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20XM | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XGT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM 439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
