| Tempat asal: | Cina |
|---|---|
| Nama merek: | YIZGEAR |
| Sertifikasi: | QC |
| Nomor model: | C6LB-R6-2G |
| Kuantitas min Order: | 1000 BUAH |
| Harga: | 0.2 |
| Kemasan rincian: | Peti kayu lapis |
| Waktu pengiriman: | 20 hari |
| Menyediakan kemampuan: | 50000 buah/bulan |
| Diameter nominal: | 5 | Diameter Nyata: | 4.85-4.95 |
|---|---|---|---|
| Ketebalan Paku Keling Nominal: | 3~32mm | Ketebalan riveting yang sebenarnya: | 1.6 ~ 33.4mm |
| Menyoroti: | 3/16 " Huck kunci baut,Nominal Diameter 5 kunci baut |
||

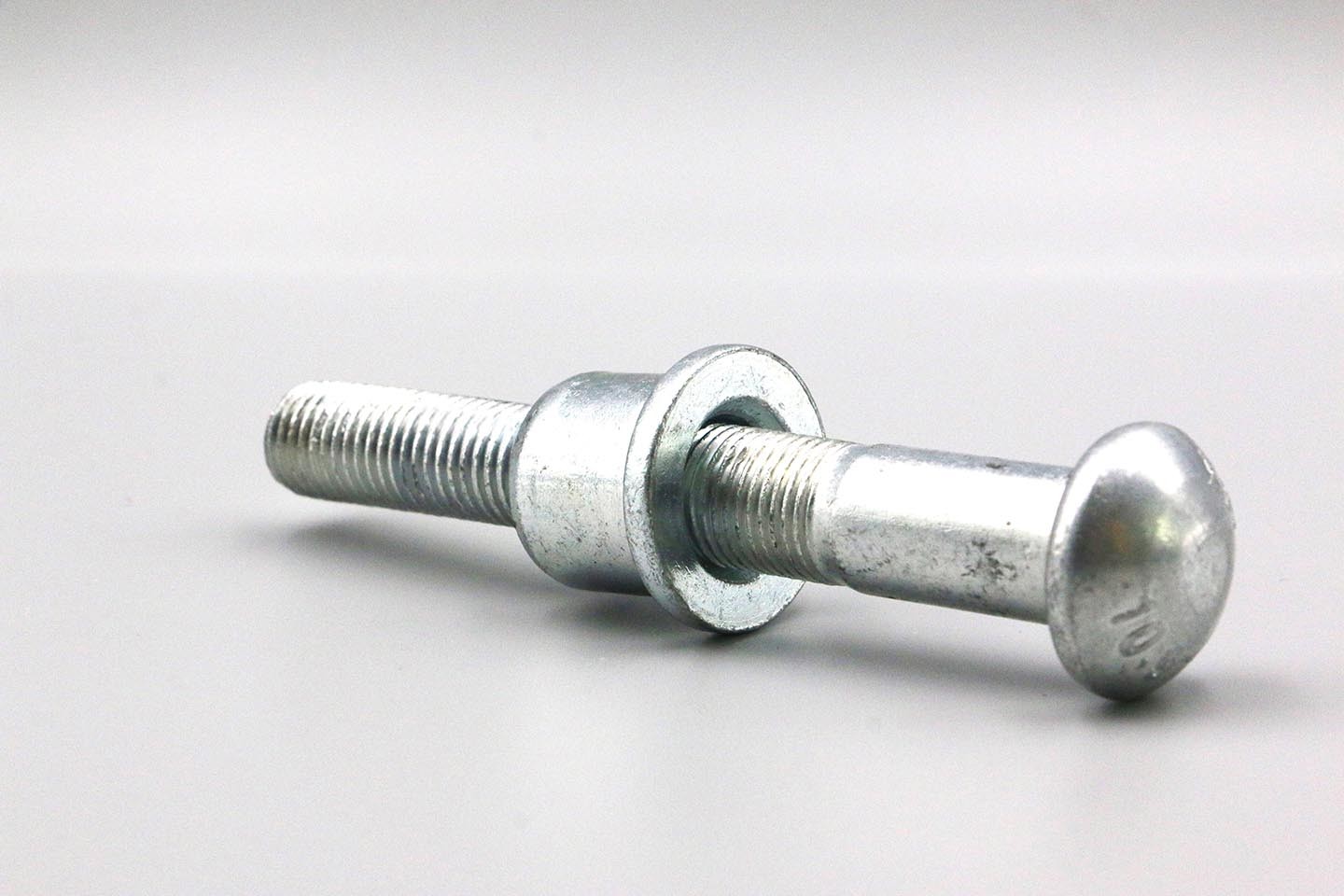

Ring-Grooved kunci baut Nominal Diameter 5 3/16 "Huck C6LB-R6-2G
Bahan baut: Baja paduan
Material kerah: ML08
| Nominal Diameter | Diameter Nyata | Ketebalan Nominal Riveting | Ketebalan riveting yang sebenarnya | Model Huck | Model Avdel | ||
| Min | Maksimal | Min | Maksimal | ||||
| 5 (3/16") |
4.85 | 4.95 | 3 | 1.6 | 4.8 | C6LB-R6-2G | 02621-70602 |
| 5 | 3.2 | 6.4 | C6LB-R6-3G | 02621-70603 | |||
| 6 | 4.8 | 7.9 | C6LB-R6-4G | 02621-70604 | |||
| 8 | 6.4 | 9.5 | C6LB-R6-5G | 02621-70605 | |||
| 10 | 7.9 | 11.1 | C6LB-R6-6G | 02621-70606 | |||
| 11 | 9.5 | 12.7 | C6LB-R6-7G | 02621-70607 | |||
| 13 | 11.1 | 14.3 | C6LB-R6-8G | 02621-70608 | |||
| 14 | 12.7 | 15.9 | C6LB-R6-9G | 02621-70609 | |||
| 16 | 14.3 | 17.5 | C6LB-R6-10G | 02621-70610 | |||
| 17 | 15.9 | 19.1 | C6LB-R6-11G | 02621-70611 | |||
| 19 | 17.5 | 20.7 | C6LB-R6-12G | 02621-70612 | |||
| 21 | 19.1 | 22.2 | C6LB-R6-13G | 02621-70613 | |||
| 22 | 20.7 | 23.8 | C6LB-R6-14G | 02621-70614 | |||
| 24 | 22.2 | 25.4 | C6LB-R6-15G | 02621-70615 | |||
| 25 | 23.8 | 27 | C6LB-R6-16G | 02621-70616 | |||
| 27 | 25.4 | 28.6 | C6LB-R6-17G | 02621-70617 | |||
| 28 | 27 | 30.2 | C6LB-R6-18G | 02621-70618 | |||
| 30 | 28.6 | 31.8 | C6LB-R6-19G | 02621-70619 | |||
| 32 | 30.2 | 33.4 | C6LB-R6-20G | 02621-70620 | |||
