| Tempat asal: | Cina |
|---|---|
| Nama merek: | YIZGEAR |
| Nomor model: | SB23051101 |
| Kuantitas min Order: | 2 set |
| Harga: | $700/Set |
| Kemasan rincian: | Peti kayu lapis |
| Waktu pengiriman: | 62 Hari |
| Syarat-syarat pembayaran: | T/T, L/C |
| Menyediakan kemampuan: | 500 set/bulan |
| Modul: | 10.9362 | Sudut Tekanan: | 20° |
|---|---|---|---|
| Sudut heliks: | 35° | Lebar wajah: | 104 |
| Keakuratan: | ISO 6 | Tangan Spiral: | Tangan kiri |
| Nomor Gigi Gigi: | 21 | Sudut Poros: | 90° |

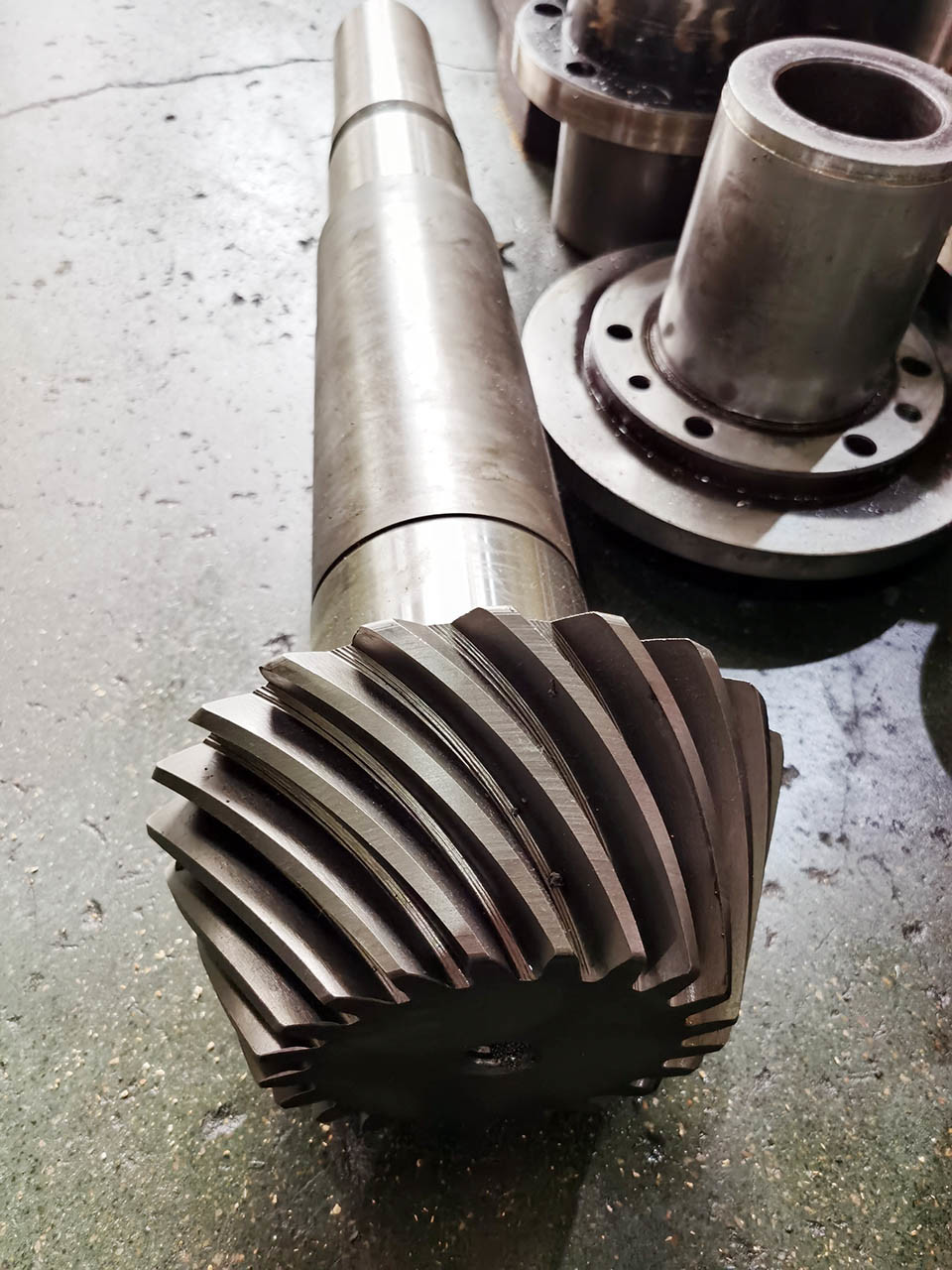

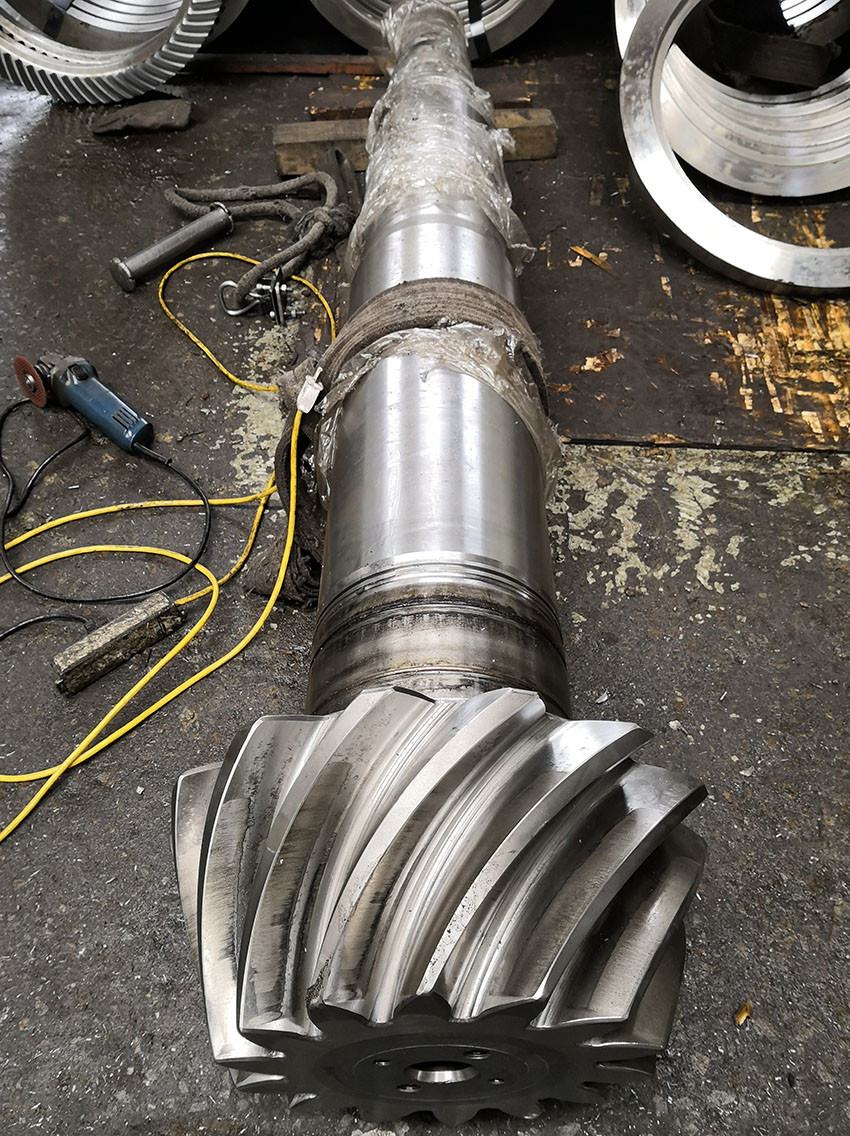

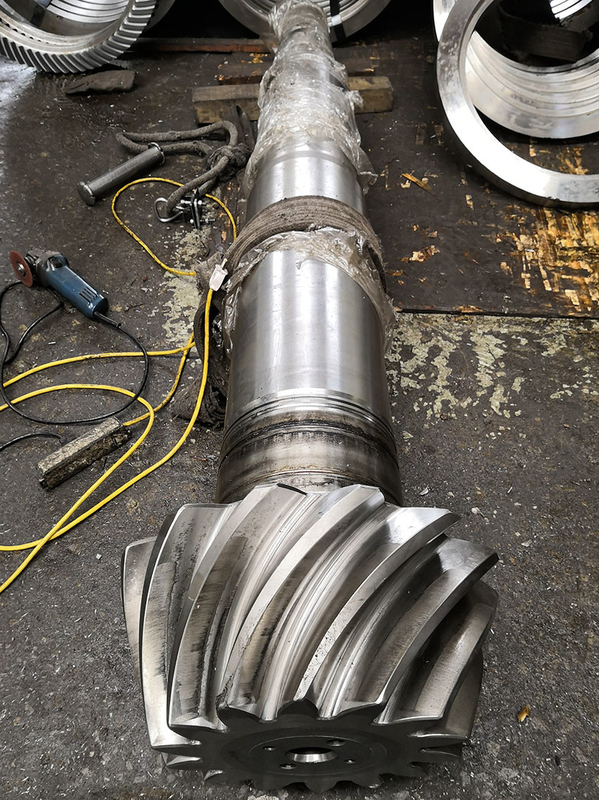

| Menyoroti: | Spiral Bevel Gear Shaft Grinding,21T Spiral Bevel Gear Shaft,ISO 6 Spiral Bevel Gear Shaft |
||
Bahan: 18CrNiMo7-6 baja tempa
Modul Normal Rata-rata: 7.4641
Modul Transversal Luar: 10.362
Rata-rata sudut spiral: 35°
Diameter pitch: 229.66
Pengolahan panas: Karburasi
Kekerasan: 58-62 HRC
Penggilingan Gigi Gear
| Produk | Gear Bevel Spiral |
| Disesuaikan | √ |
| Bahan | 18CrNiMo7-6 |
| Produksi gigi gigi | Penggilingan Gir |
| Diameter Pitch | |
| Modul | 10.9362 |
| Jumlah Gigi (Z) | 21 |
| Sudut Tekanan (α) | 20° |
| Sudut Heliks (β) | 35° |
| Tingkat Keakuratan Gigi | Kelas ISO 6 |
| Pengolahan Panas | Karburasi |
| Kekerasan permukaan | 58-62HRC |
| Perbandingan Kode Kelas Baja | |||||
| CHINA/GB | ISO | GOST | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20XM | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XGT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM 439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
