| Tempat asal: | Cina |
|---|---|
| Nama merek: | YIZGEAR |
| Sertifikasi: | QC |
| Nomor model: | C50LR-BR24-4 |
| Kuantitas min Order: | 1000 BUAH |
| Harga: | 0.2 |
| Kemasan rincian: | Peti kayu lapis |
| Waktu pengiriman: | 20 hari |
| Menyediakan kemampuan: | 50000 buah/bulan |
| Diameter nominal: | 20 | Diameter Nyata: | 18.8~19.5 |
|---|---|---|---|
| Ketebalan Paku Keling Nominal: | 6 | Ketebalan riveting Actmual: | 6.35 ~ 12.7 |
| Menyoroti: | Collar Ring-Grooved Lock Bolt,Bolt penguncian dengan alur ring,Pengikat Blank Rivet Bolts |
||

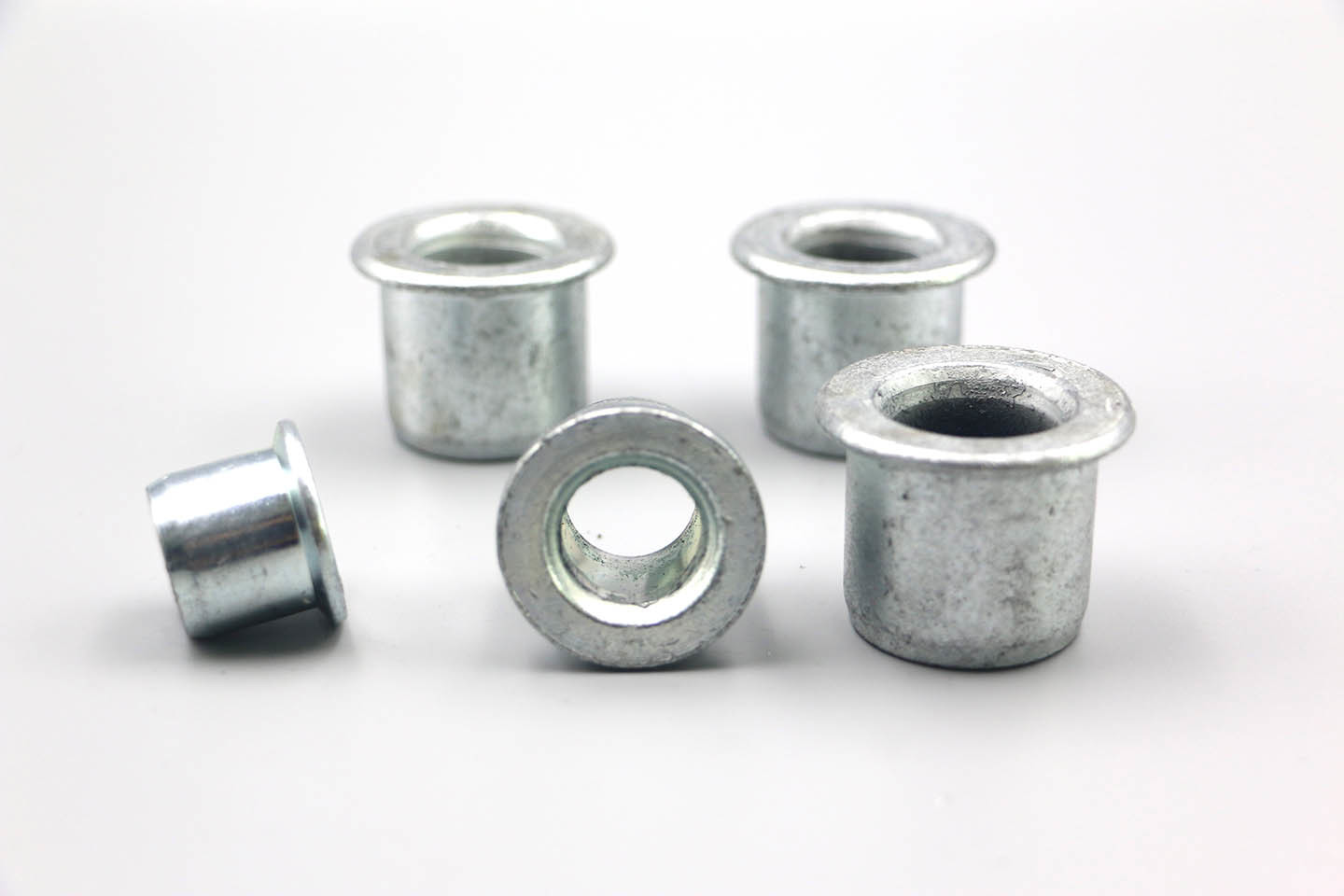

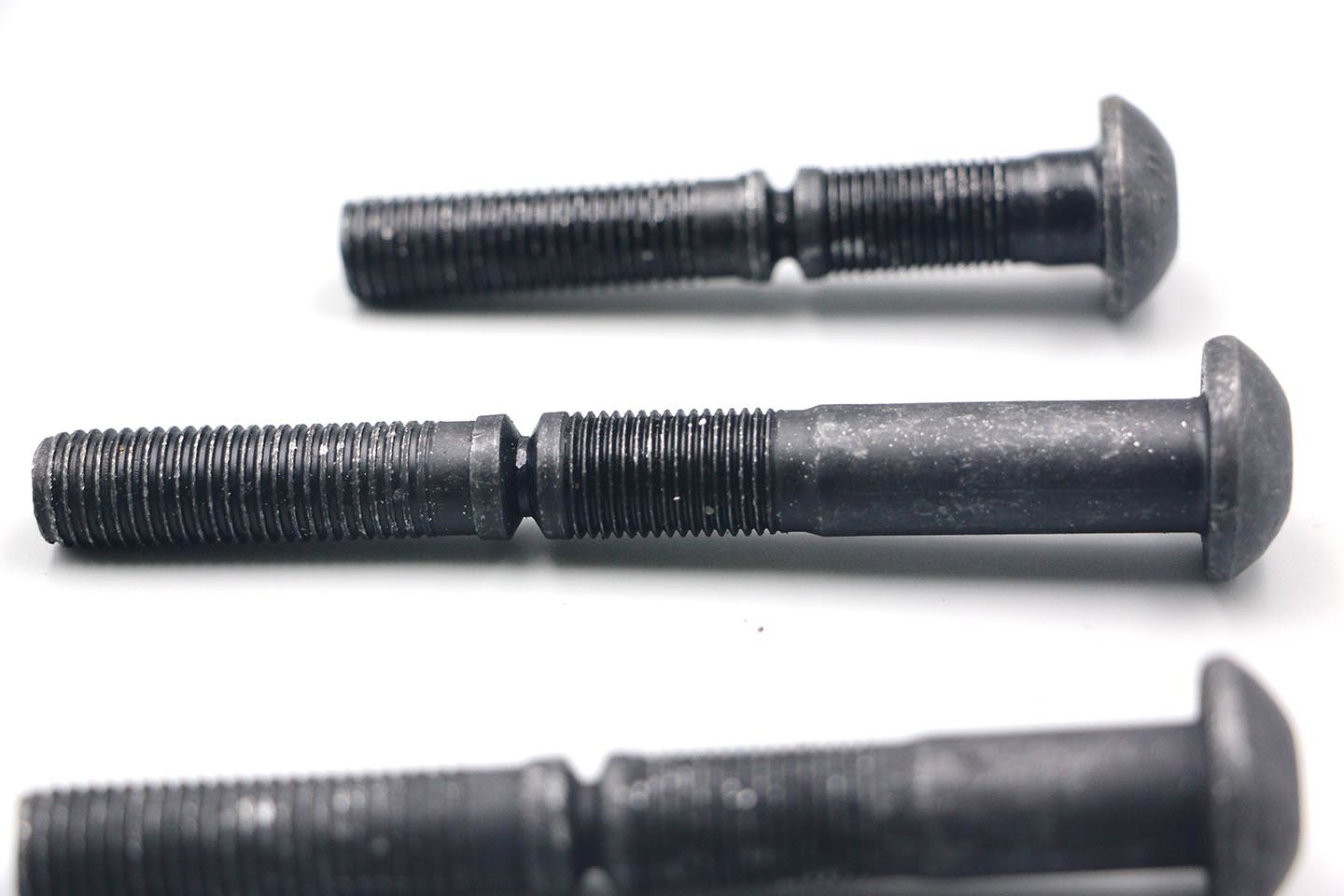

Fastener Blind Rivet Bolts Collar Ring-Grooved Lock Bolt 20 3/4 " C50LR-BR24-4
Aplikasi Bolt Kunci
Aerospace: Bolt penguncian banyak digunakan dalam aplikasi aerospace,
seperti dalam perakitan struktur pesawat, sayap, badan pesawat, dan komponen mesin.
Mereka menyediakan sendi yang aman dan tahan getaran yang memenuhi persyaratan keamanan dan kinerja industri aerospace yang ketat.
| Nominal Diameter | Diameter Nyata | Ketebalan Nominal Riveting | Ketebalan riveting yang sebenarnya | Model Huck | Model Avdel | ||
| Min | Maksimal | Min | Maksimal | ||||
| 20 (3/4 ¢) |
18.8 | 19.5 | 6 | 6.35 | 12.7 | C50LR-BR24-4 | 02861-02404 |
| 12 | 12.7 | 19.1 | C50LR-BR24-8 | 02861-02408 | |||
| 18 | 19.1 | 25.4 | C50LR-BR24-12 | 02861-02412 | |||
| 24 | 25.4 | 31.8 | C50LR-BR24-16 | 02861-02416 | |||
| 31 | 31.8 | 38.1 | C50LR-BR24-20 | 02861-02420 | |||
| 37 | 38.1 | 44.5 | C50LR-BR24-24 | 02861-02424 | |||
| 44 | 44.5 | 50.8 | C50LR-BR24-28 | 02861-02428 | |||
| 50 | 50.8 | 57.2 | C50LR-BR24-32 | 02861-02432 | |||
| 57 | 57.2 | 63.5 | C50LR-BR24-36 | 02861-02436 | |||
| 63 | 63.5 | 69.9 | C50LR-BR24-40 | 02861-02440 | |||
| 70 | 69.8 | 76.2 | C50LR-BR24-44 | 02861-02444 | |||
| 77 | 76.2 | 82.6 | C50LR-BR24-48 | 02861-02448 | |||
| 83 | 82.6 | 88.9 | C50LR-BR24-52 | 02861-02452 | |||
| 89 | 88.9 | 95.3 | C50LR-BR24-56 | 02861-02456 | |||
| 95 | 95.3 | 101.6 | C50LR-BR24-60 | 02861-02460 |
