| Tempat asal: | Cina |
|---|---|
| Nama merek: | YIZGEAR |
| Nomor model: | GS23032502 |
| Kuantitas min Order: | 2 buah |
| Harga: | $90/ Piece |
| Kemasan rincian: | Peti kayu lapis |
| Waktu pengiriman: | 62 Hari |
| Syarat-syarat pembayaran: | T/T, L/C |
| Menyediakan kemampuan: | 500 set/bulan |
| Modul: | 6 | Tipe Splin: | Libatkan Spline |
|---|---|---|---|
| Sudut Tekanan: | 30° | Nomor Gigi Gigi: | 32 |
| Perawatan panas: | Karburasi | Standar: | DIN5480 |
| Menyoroti: | Poros Spline Involute Baja Tempa,Poros Spline Involute DIN 5480,Poros Spline Involute 6M |
||

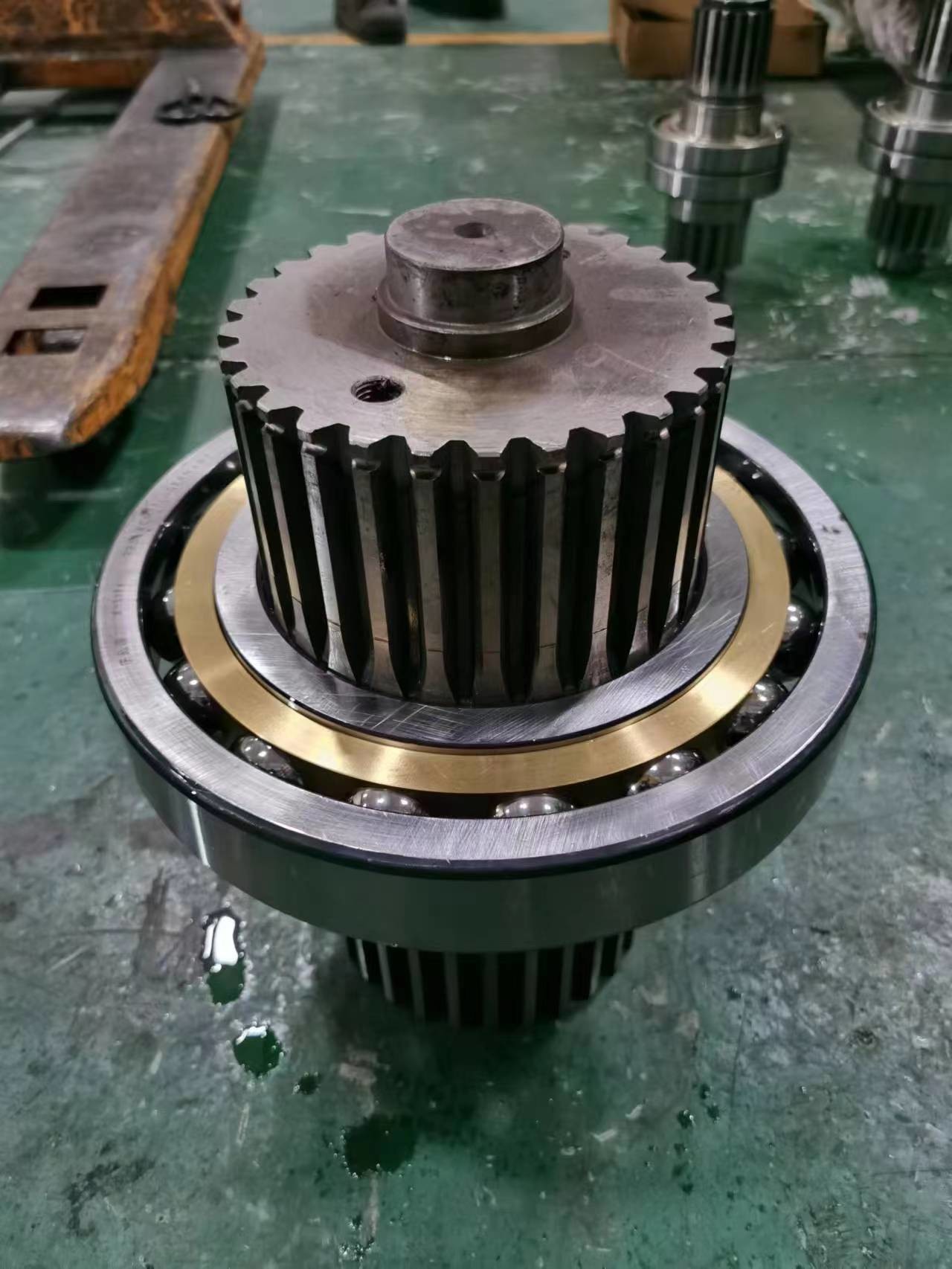

DIN 5480 6M 32T Memalsukan baja Involute Spline Shaft Untuk peralatan pertambangan
Jumlah gigi: 32
Sudut tekanan: 30°
Standar DIN 5480
Lebar wajah: 80mm
Diameter pitch: 4.2333
Diameter Pitch: 192mm
Diameter Mayor: 197.4
Diameter Minor: 185.4
| Produk | Spline Shaft |
| Disesuaikan | √ |
| Bahan | 17CrNiMo6 |
| Pabrik gigi gigi | Spline Hobbing |
| Penggilingan Gigi Gear | √ |
| Modul (M) | 2 |
| Jumlah Gigi (Z) | |
| Sudut Tekanan (α) | 30° |
| Sudut Heliks (β) | 20° |
| Tingkat Keakuratan Gigi | Kelas ISO 7/ AGMA 11Kelas |
| Pengolahan Panas | Karburasi |
| Kekerasan permukaan | 58-62 HRC |
| Perbandingan Kode Kelas Baja | |||||
| CHINA/GB | ISO | GOST | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20XM | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XGT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM 439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
