| Tempat asal: | Cina |
|---|---|
| Nama merek: | YIZGEAR |
| Nomor model: | HG23032502 |
| Kuantitas min Order: | 1 buah |
| Harga: | $80/ Piece |
| Kemasan rincian: | Peti kayu lapis |
| Waktu pengiriman: | 50 hari |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, D/P |
| Menyediakan kemampuan: | 1000 Potongan/Bulan |
| Koefisien Tambahan: | 1.0 | Koefisien Izin: | 0,25 |
|---|---|---|---|
| 鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆: | 0,3 | Kekasaran Gigi Gear: | Ra0.8~Ra1.6 |
| Modul: | 7 | Kelas Kualitas: | ISO 6-7 Kelas |
| Menyoroti: | Steel Grinding Single Helical Gear,17CrNiMo6 Single Helical Gear,ISO 6 Grade Single Helical Gear |
||

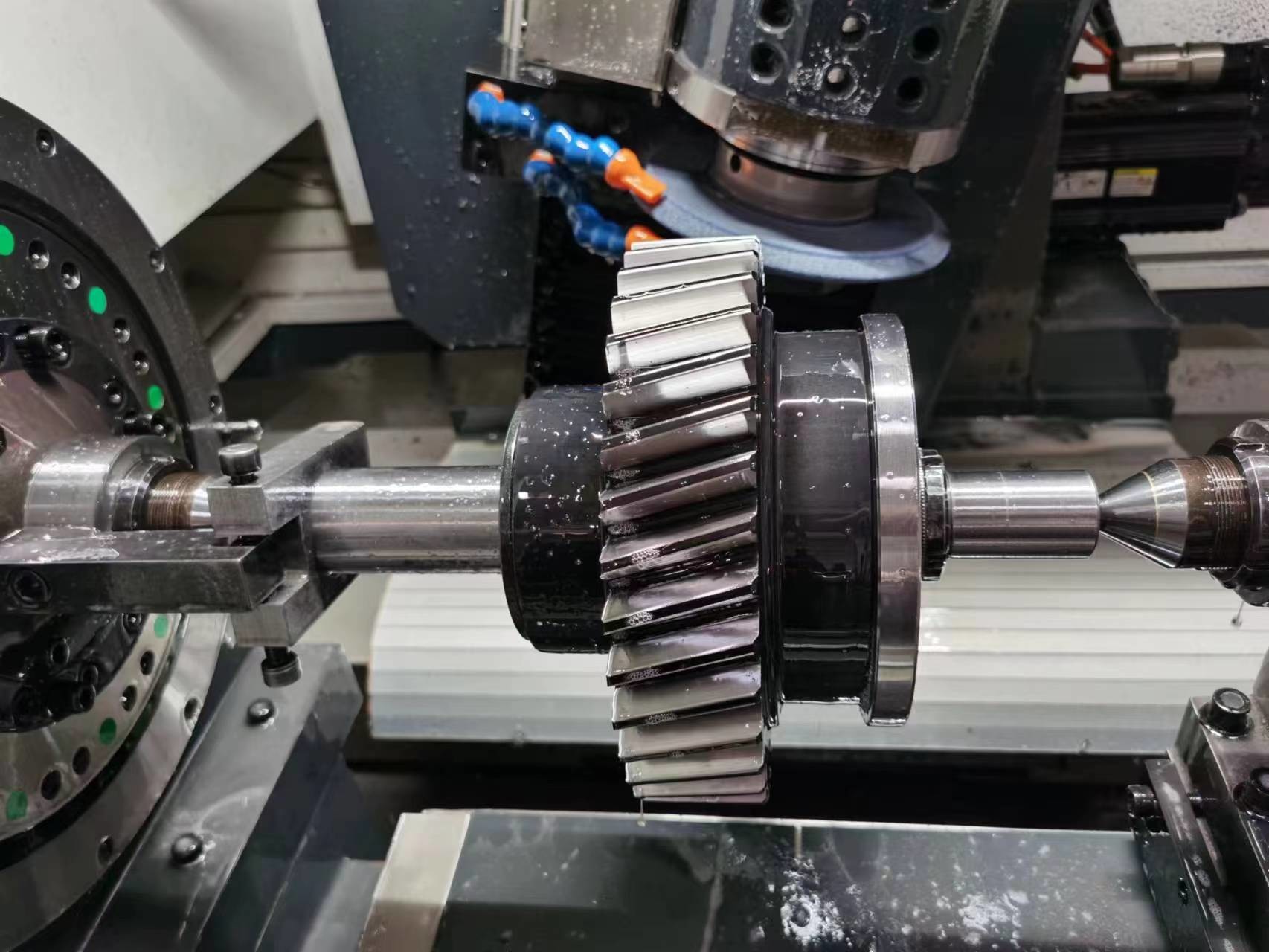

Gear Transmisi Kereta Berkecepatan Tinggi 17CrNiMo6 Gear Baja Grinding Helical Gear
1) Modul Normal 7
2) Modular 7.2469
3) Pitch melingkar 22,76691mm
4) Lebar wajah: 50mm
5) Sudut tekanan: 20°
6) Pengukuran rentang gigi Nomor 4
7) Wk 75.141 ~ 74.877
| Produk | Gear Helical |
| Disesuaikan | √ |
| Jenis Profil Gir | Peralatan silinder |
| Produksi | Perlengkapan Hobbing |
| Menggiling Gigi | √ |
| Modul (M) | 7 |
| Jumlah Gigi (Z) | 26 |
| Sudut Tekanan (α) | 20° |
| Sudut Lead | 15° |
| Tingkat Keakuratan | Kelas ISO 6-7 |
| Pengolahan Panas | Karburasi |
| Kekerasan permukaan | 58-62 HRC |
| Perbandingan Kode Kelas Baja | |||||
| CHINA/GB | ISO | GOST | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20XM | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XGT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM 439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
